Built-in Power Supplies

Built-in Power Supplies

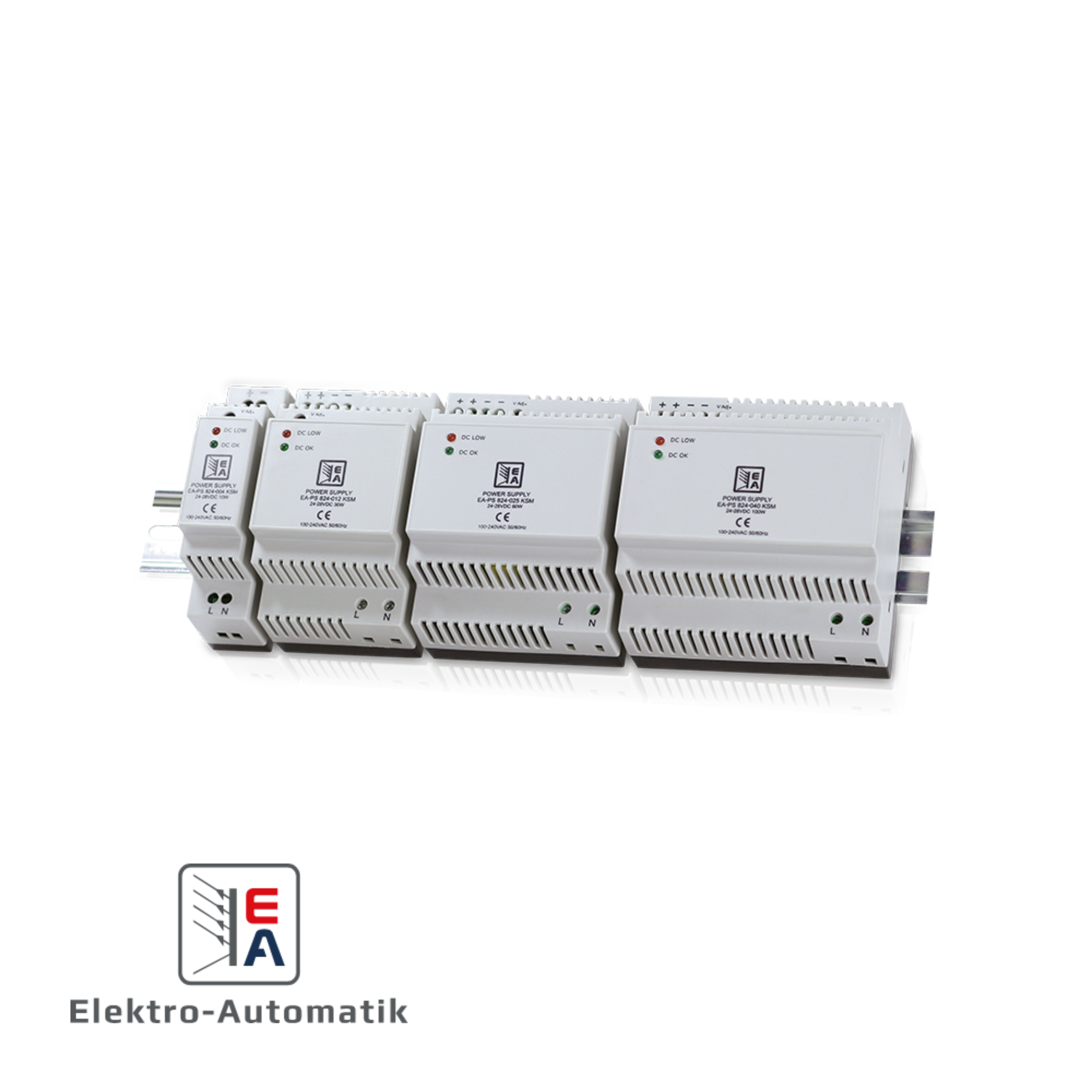

Series PS 800 SM and PS 800 KSM

Download Datasheet

  • Input voltage AC: 90...264 V
  • Input voltage DC: 120...370 V
  • Output power ratings: 10 W, 30 W, 60 W, 78 W, 100 W
  • Output voltages: 12 V and 24 V
  • Output currents: 0.42 A up to 6.5 A
  • Overload- and short-circuit-proof
  • Overtemperature protection
  • Overvoltage protection
  • Natural cooling
  • Protection degree IP20
  • Isolation class II
  • Safety EN 60950
  • EMC EN 61204 (EN 55022 class B)

General
These switching mode power supplies are designed for DIN rail mounting
on DIN TS35/7.5 or DIN TS35/15 rails. They are housed in a rugged plastic
case with protection degree IP20.

All models have a wide input range for 90 V to 264 V AC or 120 V to 370 V DC
for worldwide usage without the need of selecting the input.

The units are protected against short-circuit, overload, overtemperature
and overvoltage.

The output is isolated against the mains supply (floating potential). The
output voltage is adjustable within 12...15 V DC or 24...28 V DC. The units
are provided with output current limiting to 110%-130% (overload) or
150% (short-circuit).

A derating of 2.5%/°C for temperatures of >55 °C up to 70 °C is required.
