Battery Chargers - Standard (lead)

Battery Chargers - Standard (lead)

Battery Chargers - Standard (lead) -

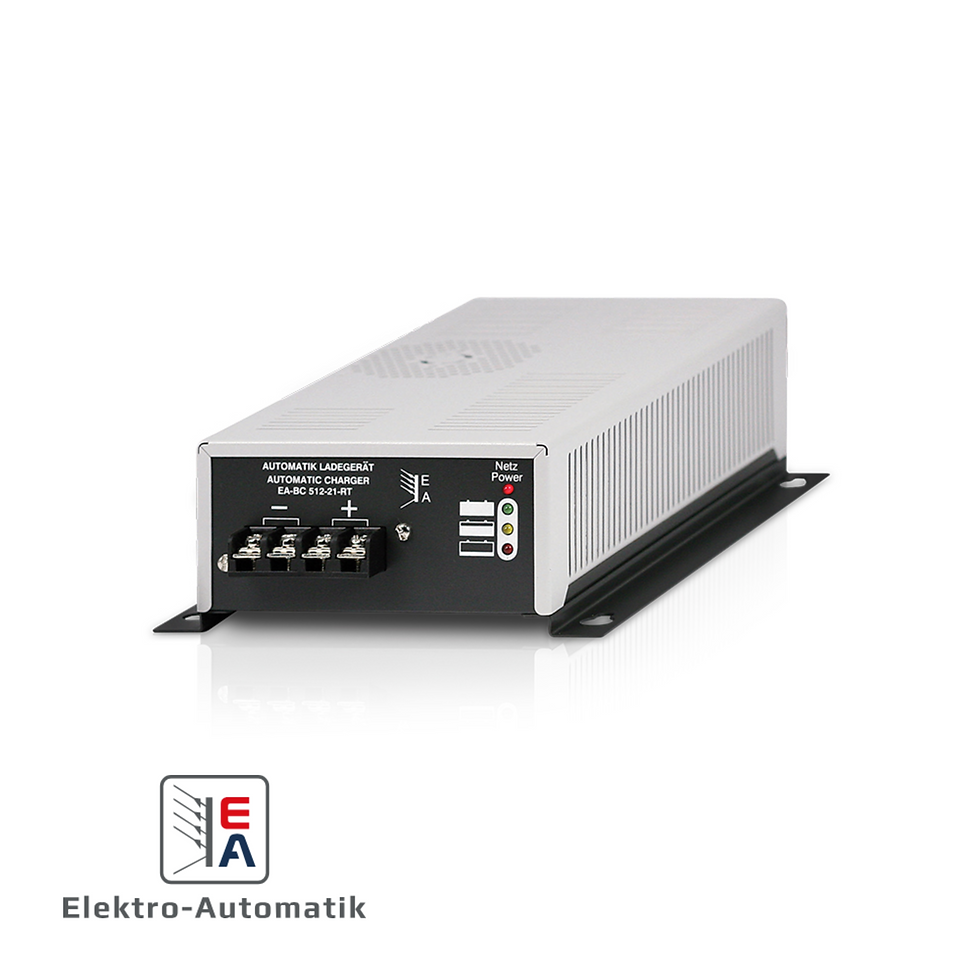

BC 500 RT

Download Datasheet

  • Wide input voltage range 90...264 V with active PFC
  • Output powers: 150 W up to 300 W
  • Battery voltages: 12 V, 24 V or 48 V
  • Charging currents: 5.5 A up to 20.5 A
  • I-U-U charging characteristic
  • Short-circuit and reverse polarity protection
  • Overtemperature protection (OT)
  • Including adaptor for wall mount
  • Safety EN 60950

General
The automatic battery chargers of the series EA-BC 500 are suitable for charging lead acid batteries with a capacity up to 300 Ah.
The units operate using the I-U-U characteristics.
The empty battery is first charged in constant current mode until the rated voltage is reached. There follows a boost charge at constant voltage, limit- ed to one hour. Thereafter the charger switches to trickle charge.
Three LEDs on the front are indicating the actual status of the charging mode.

Output
Different battery chargers for batteries with 12 V, 24 V or 48 V, charging currents from 5.5 A to 20.5 A and powers from 150 W to 300 W are avail- able. The battery chargers are protected against reverse battery polarity.
