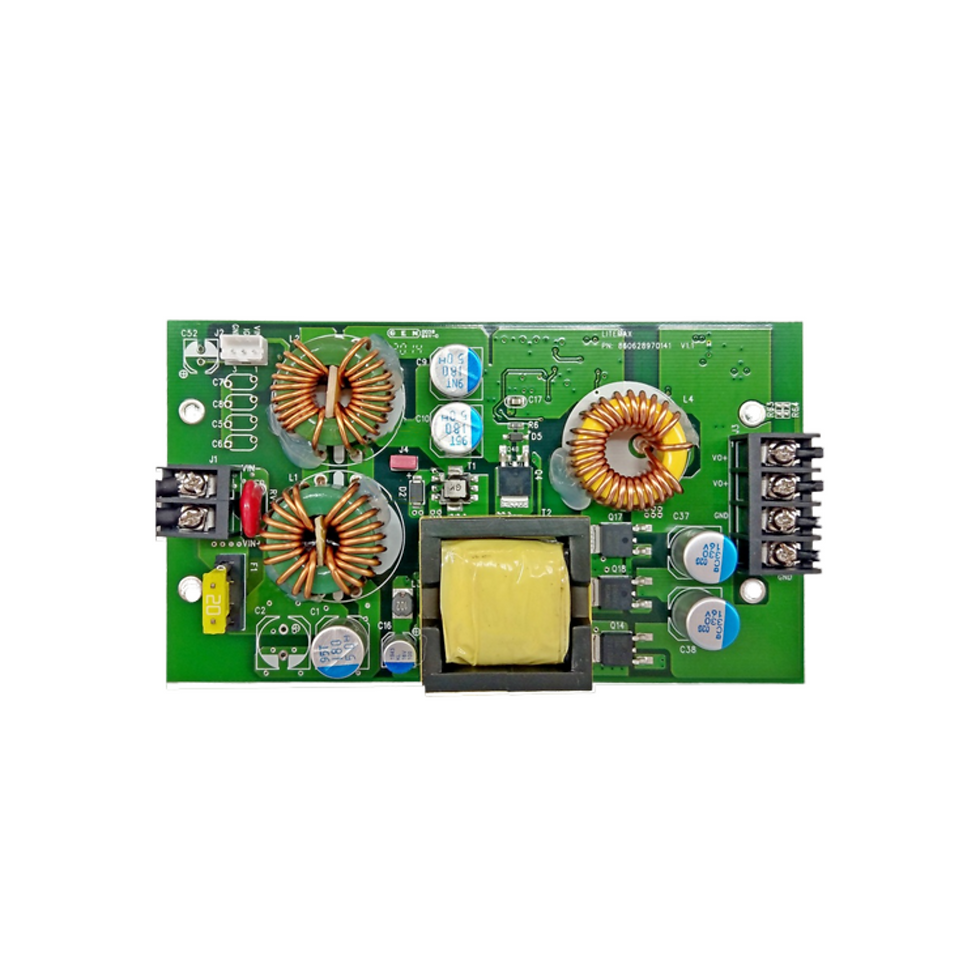

IPW08012V
- 9 ~ 36V Wide Input Voltage.
- Single 12V DC Voltage Output.
- 80W Max Load
- High Efficiency up to 91%
- Short Circuit Protection
- Over Current/Voltage protection
- Ignition Shutdown Control
- ROHS Compliant
Model Name | IPW08012V |
Description | 80W DC/DC Isolation Power Converter Module |
Input Voltage | DC 9 ~ 36V |
Output Voltage | 11.2 A @ 9V |
Max. Output Power | 80W (6.6A @ 12V) |
Efficiency | Up to 91% |
Noise and Ripple | < 100 mV |
Line Regulation | < 1% |
Load Regulation | < 5% |
Operating Temperature | -20 °C ~ 60 °C |
Storage Temperature | -20 °C ~ 80 °C |
Dimension | 125x72x20 mm |
Ignition Control | Upon request |
Power On/Off Delay | Upon request |
Protection | OVP. OCP. SCP |
Input | 9 ~ 36V |
Output | 12V DC |
Voltage | 80W |
