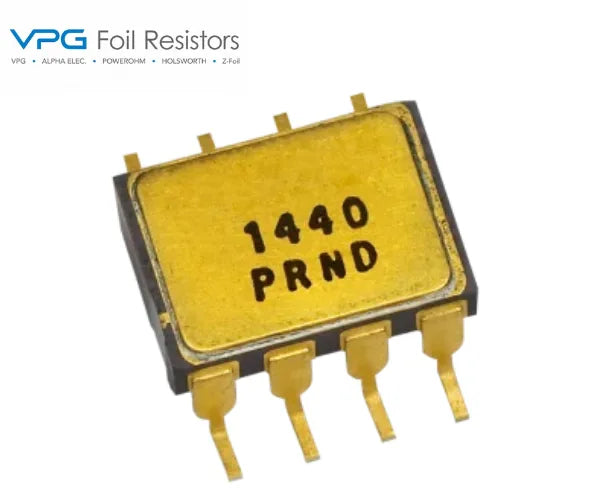

The VPG Foil Resistors VSM40 is a precision surface-mount resistor network built using Bulk Metal® Foil technology. Its hermetically sealed ceramic package and closely matched resistive elements support high-accuracy analog circuits that require low temperature sensitivity, excellent resistance stability and reliable long-term performance. The gull-wing terminal configuration supports surface-mount assembly in precision instrumentation and electronic measurement systems.
Key Features
Bulk Metal® Foil resistive technology
Hermetically sealed ceramic package
Surface-mount gull-wing terminals
Multiple resistor-network configurations
Resistance values from 5Ω to 120kΩ
Resistance tolerance down to ±0.005%
Typical temperature coefficient of ±2ppm/°C
Temperature tracking down to ±0.5ppm/°C
Resistance ratio matching down to 0.002%
Rated package power up to 0.4W
Typical load-life stability of ±0.002%, as listed in the manufacturer's product table
Designed for precision and high-stability circuits
