The Tektronix MSO/DPO70000DX Series is a digital and mixed signal oscilloscope for high-speed electronic design, serial data analysis, signal integrity, compliance testing, and research applications. Analog bandwidth spans 8 GHz to 33 GHz, with signal fidelity and acquisition performance matched to that range.
Key Features
8 GHz to 33 GHz analog bandwidth

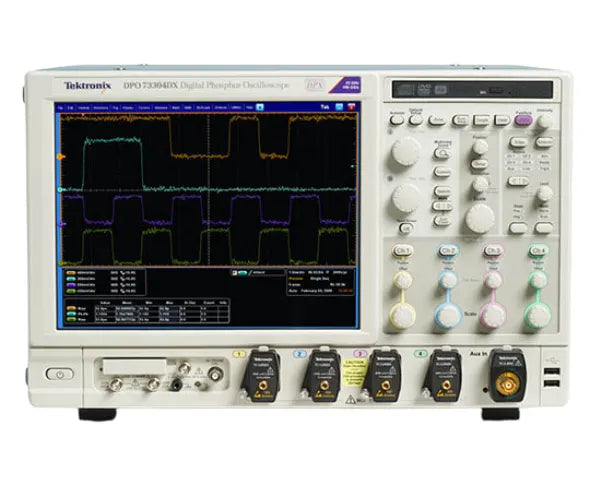

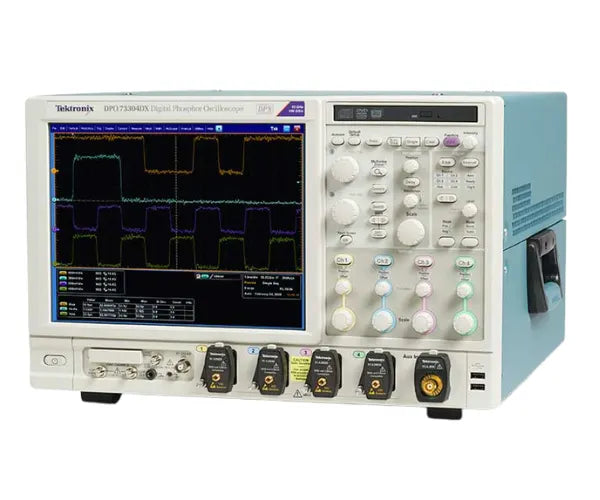

4 analog channels on DPO models

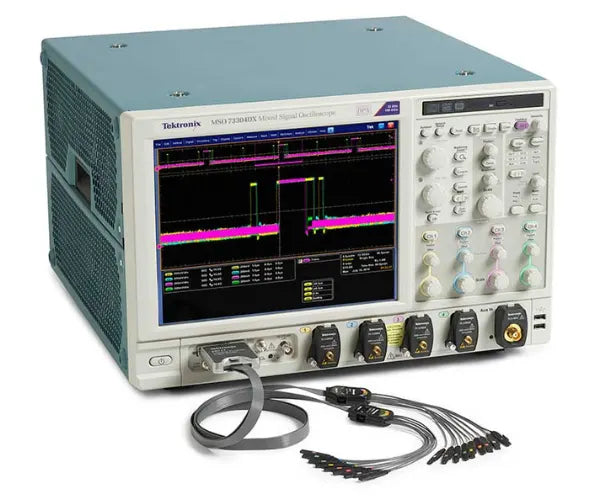

4 analog + 16 digital channels on MSO models
Up to 100 GS/s sample rate
Up to 50 GS/s on four analog channels
High signal-to-noise ratio and low internal noise
Up to 1 Gpoint record length depending on configuration
Advanced jitter and eye-diagram analysis
High-speed serial bus analysis
Serial compliance testing
Digital logic analysis on MSO models
iCapture™ technology on MSO models
Fast waveform capture exceeding 300,000 waveforms/second
