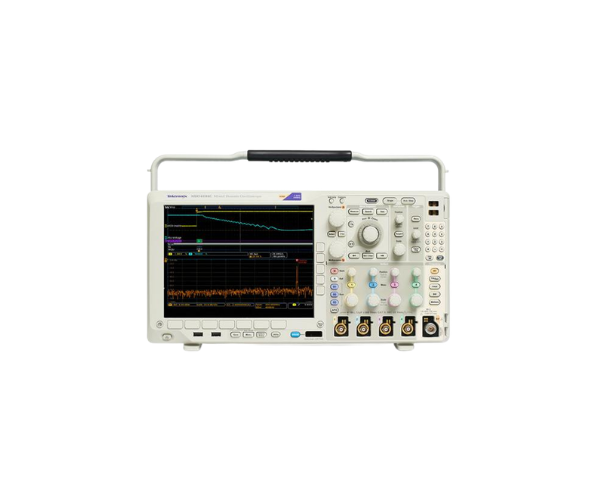

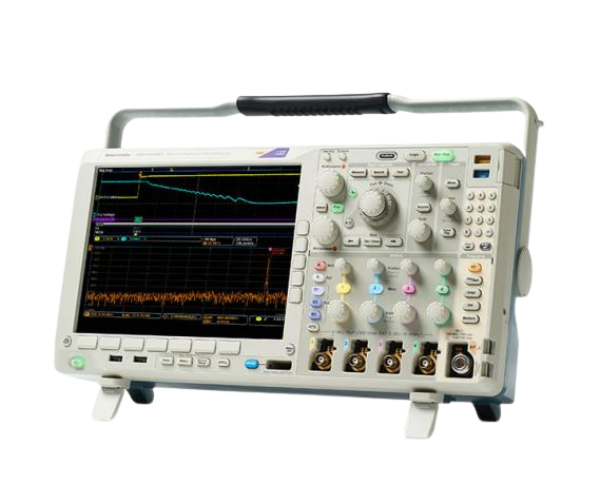

The Tektronix MDO4000C is a mixed domain oscilloscope that combines an oscilloscope with an integrated spectrum analyzer, so analog, digital, and RF signals can be analyzed from a single platform with synchronized time-domain and frequency-domain views. It's suited for embedded systems, RF, communications, automotive, and general electronic design work.
Key Features
-
200 MHz to 1 GHz analog bandwidth
- 4 analog channels
- Optional 16 digital channels
- Up to 2.5 GS/s analog sample rate
-
20 Mpoint record length
- Integrated spectrum analyzer
- Spectrum analysis up to 6 GHz
- Synchronized analog, digital, and RF signal analysis
- Optional 50 MHz arbitrary/function generator
- Serial bus triggering, decoding, and analysis
- Wave Inspector® waveform navigation and search
- Digital voltmeter and frequency counter
- Advanced RF signal analysis capabilities
-
60.6 ps digital logic timing resolution with MagniVu®
- Support for I²C, SPI, UART/RS-232/422/485, USB, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, ARINC 429 and Audio buses with applicable options
