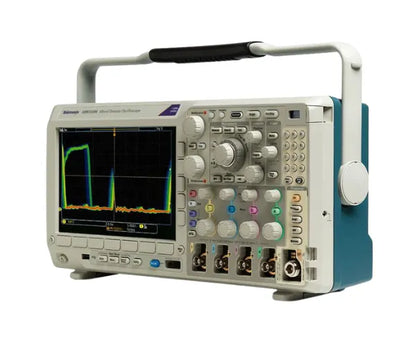

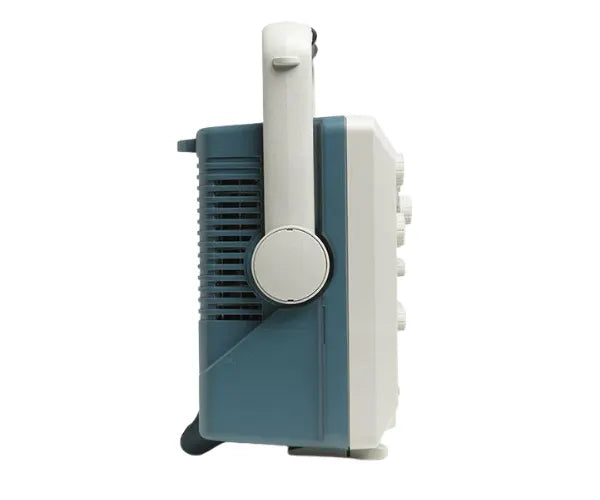

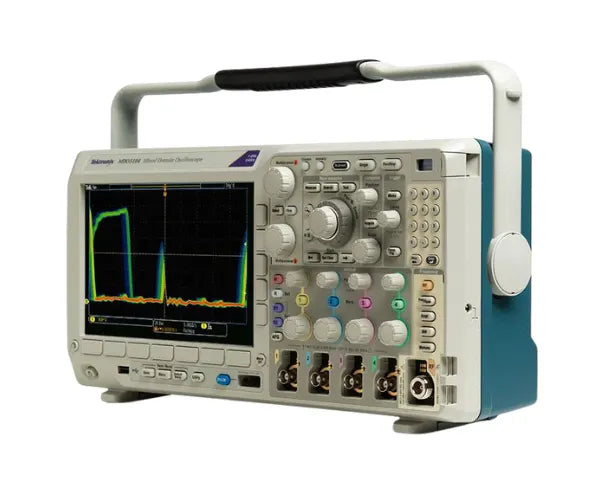

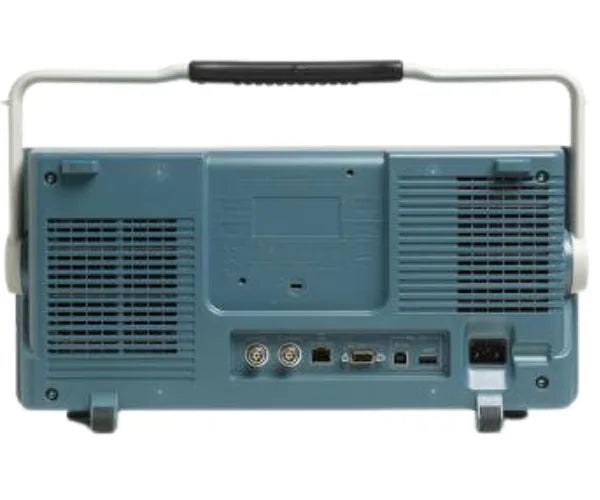

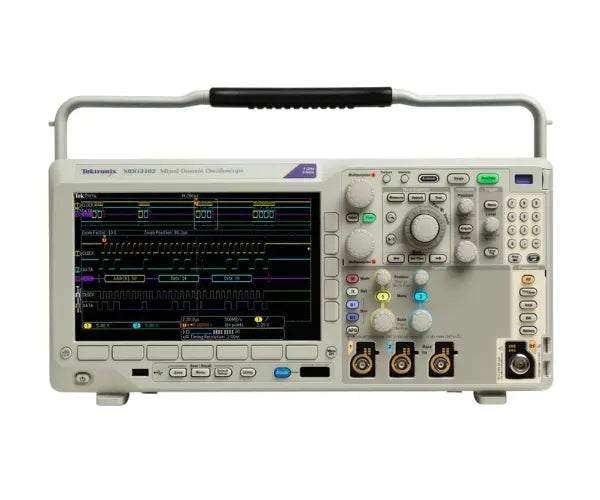

The Tektronix MDO3000 is a mixed domain oscilloscope that combines six instruments in one unit: oscilloscope, spectrum analyzer, arbitrary/function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. It's suited for engineers working across analog, digital, and RF signals in embedded, automotive, wireless, and general electronic design applications.
Key Features
100 MHz to 1 GHz analog bandwidth
2 or 4 analog channels
Up to 5 GS/s sample rate
10 Mpoint record length on all channels
More than 280,000 waveforms/second capture rate
Integrated hardware spectrum analyzer
Spectrum analyzer range from 9 kHz to oscilloscope bandwidth
Optional spectrum analysis up to 3 GHz
Optional 16 digital logic channels
Optional 50 MHz arbitrary/function generator
Serial bus triggering and protocol analysis
Wave Inspector® waveform navigation and analysis
Digital voltmeter and frequency counter
Upgradable oscilloscope bandwidth
Standard passive probes with low 3.9 pF capacitive loading
Up to six integrated test and measurement instruments
