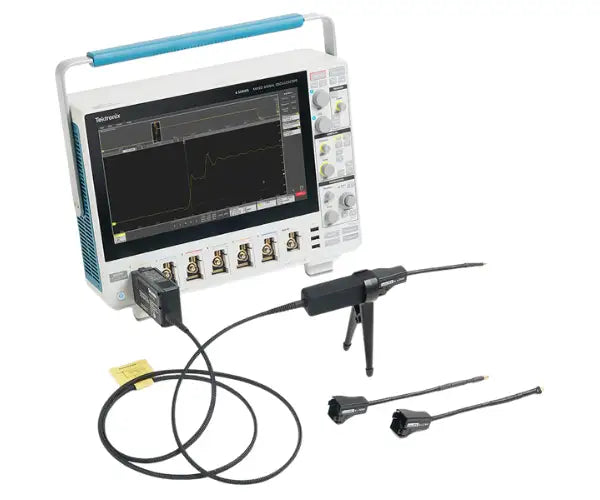

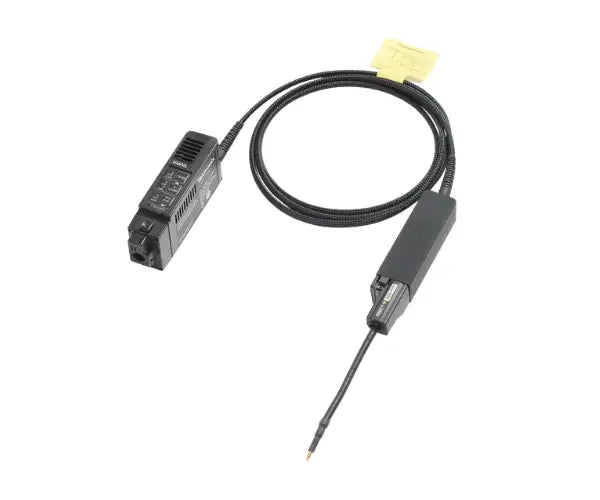

Tektronix IsoVu™ Isolated Voltage Probes are high-performance optically isolated differential probes designed for accurate measurement of high-bandwidth floating signals in the presence of large common-mode voltages. IsoVu technology uses galvanic optical isolation between the device under test and the oscilloscope to substantially reduce common-mode interference and improve measurement fidelity.
Key Features
200 MHz, 500 MHz and 1 GHz bandwidth options
Up to ±2,500 V differential voltage
Up to ±60 kV common-mode voltage
Up to 160 dB common-mode rejection at DC
Optical/galvanic isolation between the probe and oscilloscope
Extremely high common-mode rejection
Low-noise differential measurements
IsoVu Generation 2 compact design
No separate controller box
MMCX probe-tip connections
2 m and 10 m fiber cable options
Power-over-fiber technology
Compatible with selected Tektronix oscilloscopes, including 4, 5 and 6 Series MSO instruments
