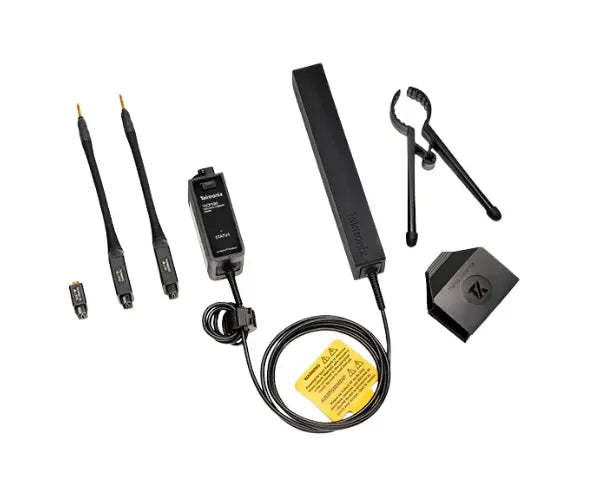

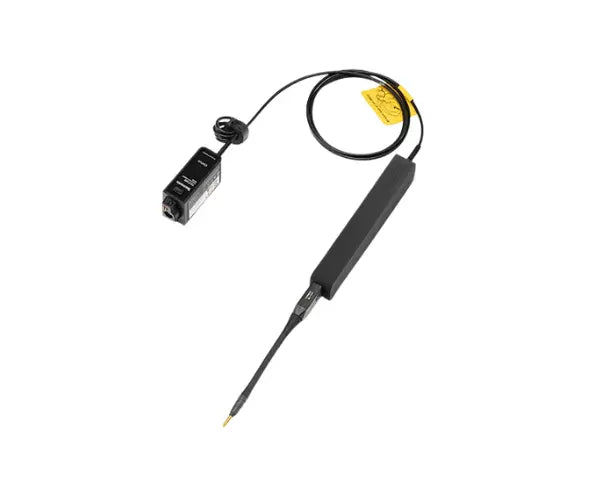

Tektronix IsoVu Isolated Current Probes
Tektronix IsoVu Isolated Current Probes
Tektronix IsoVu™ Isolated Current Probes provide high-bandwidth, low-noise current measurements for applications where conventional current probes can be limited by common-mode interference. Designed for dynamic shunt-based current measurements, IsoVu probes provide complete galvanic isolation between the probe tip and oscilloscope, helping eliminate ground loops and significantly reduce common-mode noise.
Key Features
- 250 MHz, 500 MHz, and 1 GHz bandwidth options
- Complete galvanic isolation
- Up to 1.8 kV RMS common-mode voltage
- Up to 90 dB CMRR at 1 MHz
- Noise contribution below 4.7 nV/√Hz
- Less than 150 µV noise contribution at 1 GHz
- 50 Ω input impedance

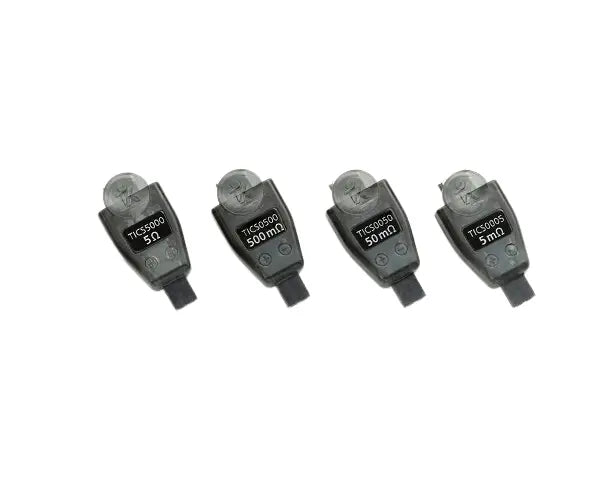

- Designed for shunt-based and CVR current measurements
- Low attenuation for low-voltage shunt measurements
- Shielded, flexible probe tips
- MMCX probe-tip connections
- Compatible with standard SMA and BNC adapters
- Automatic probe and tip recognition with compatible Tektronix oscilloscopes
- TekVPI™ interface

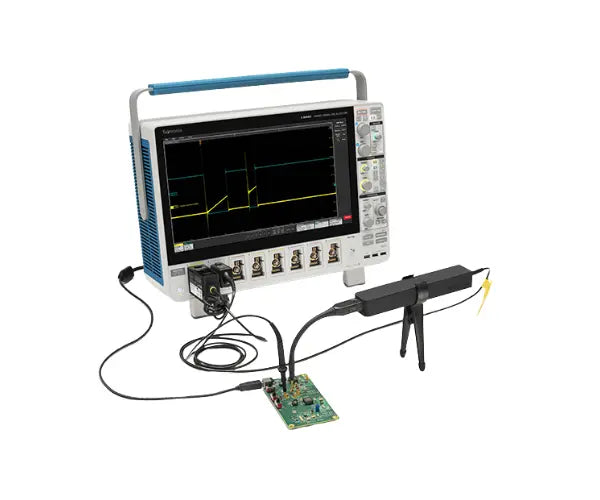

- Compatible with 4, 5, and 6 Series MSO oscilloscopes
- Optional extreme-temperature probe tips from -40°C to +125°C
- Designed for high-speed power electronics measurements
