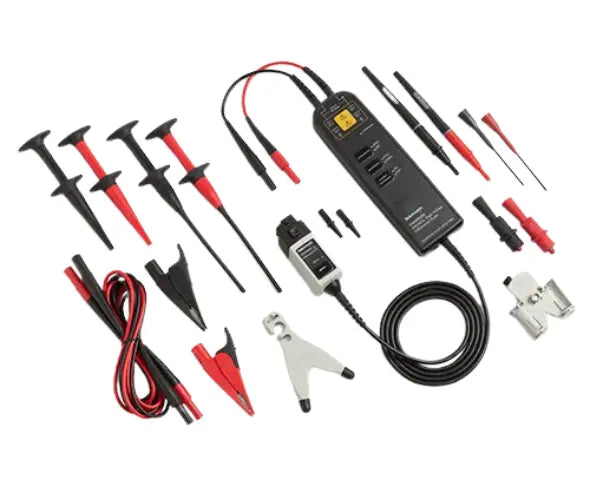

Tektronix High Voltage Differential Probes are designed for accurate measurement of floating, isolated, and non-ground-referenced voltage signals with an oscilloscope. By measuring the voltage difference between two test points rather than referencing one point to ground, these probes provide a practical solution for high-voltage and differential measurement applications. Tektronix offers high- and medium-voltage differential probes with dynamic ranges suitable for different measurement requirements.
Key Features
Designed for high-voltage differential measurements
Suitable for floating, isolated, and non-ground-referenced signals
Maximum voltage capability up to 6,000 V, depending on model
Bandwidth options from 50 MHz to 1 GHz, depending on model
High input resistance on applicable models
Low input capacitance to reduce probe loading
Common-mode rejection for differential measurements
Models for both medium- and high-voltage applications
Third-party safety certifications on applicable models
TekVPI™, TekProbe™ BNC, and other interface options depending on model
Wide range of probe accessories and DUT connection options
