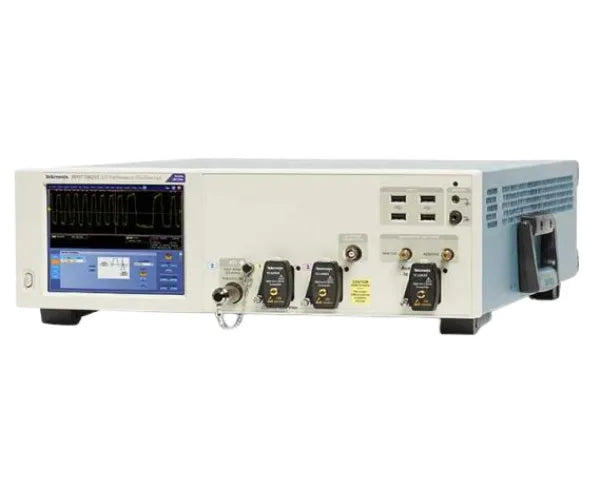

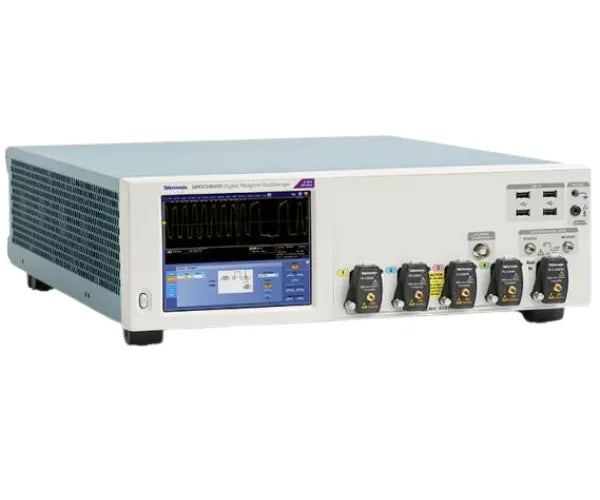

The Tektronix DPO70000SX ATI is a real-time oscilloscope for high-speed signal characterization, optical communications, data communications, wideband RF, and research applications. Bandwidth runs 33 GHz to 70 GHz, with signal fidelity and noise performance suited to work at that range.
Key Features
33 GHz to 70 GHz analog bandwidth
Up to 200 GS/s real-time sample rate
Up to 1 Gpoint record length
1 to 16 analog channels depending on configuration
Patented ATI™ (Asynchronous Time Interleaving) technology
High signal fidelity with low noise
5 ps/sample resolution at 200 GS/s

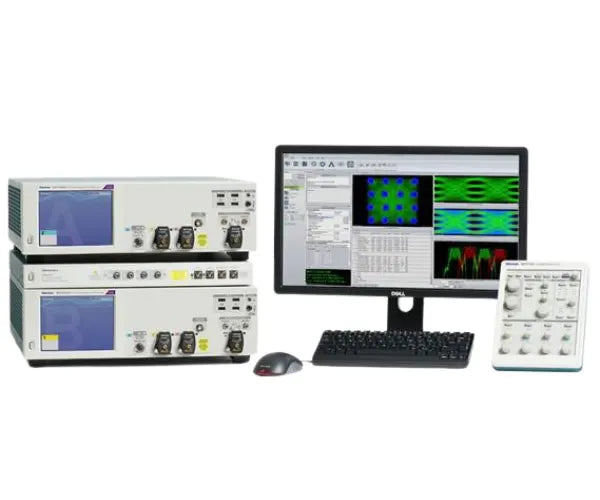

UltraSync™ multi-instrument synchronization
Compact 3U rack-mount design
Advanced jitter and eye-diagram analysis
High-speed serial trigger and analysis
Bit error detection capability
Wideband RF and modulation analysis
Coherent optical signal analysis
High-speed data communications testing
PCI Express, USB, DDR, Ethernet and other high-speed interface analysis
Compatible with Tektronix advanced compliance and analysis software
