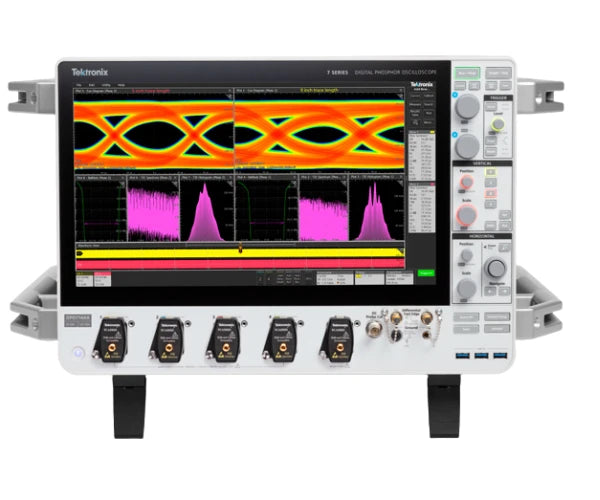

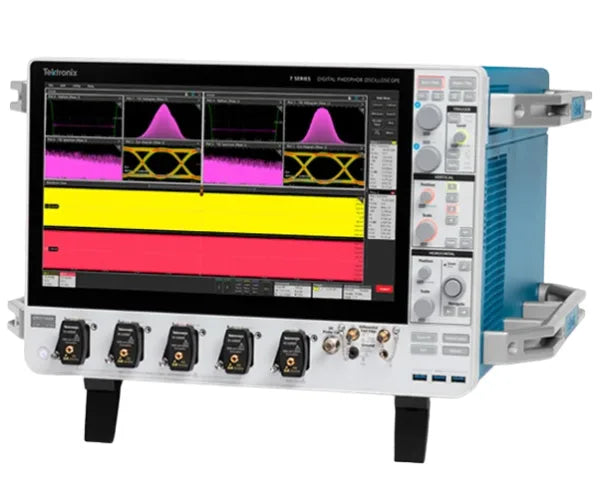

The Tektronix 7 Series DPO is a digital phosphor oscilloscope for high-speed serial analysis, RF applications, signal integrity testing, and scientific research. Bandwidth options run 8 GHz to 25 GHz, sampling rates go up to 125 GS/s, and record length reaches 2 Gpoints, giving high-fidelity acquisition of fast, complex signals.
Key Features
8 GHz to 25 GHz analog bandwidth
4 analog channels
Up to 125 GS/s sample rate
Up to 2 Gpoints record length
12-bit ADC resolution
High ENOB for detailed signal characterisation
Low-noise acquisition for improved measurement accuracy
15.6-inch Full HD 1920 × 1080 touchscreen display
TekScope® intuitive user interface
TekConnect™ probe interface
Advanced jitter and eye-diagram analysis
High-speed serial compliance testing
RF and wideband signal analysis
Up to 10× faster data transfer with TekHSI™ and 10 Gbps SFP+
SignalVu-PC compatibility for advanced RF analysis

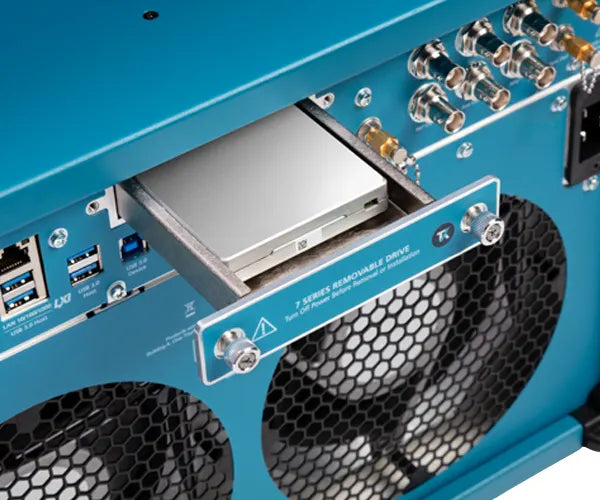

Removable SSD with embedded OS or optional Windows OS
Signal Path Compensation for measurement accuracy
QuietChannel™ technology for reduced signal-path noise
