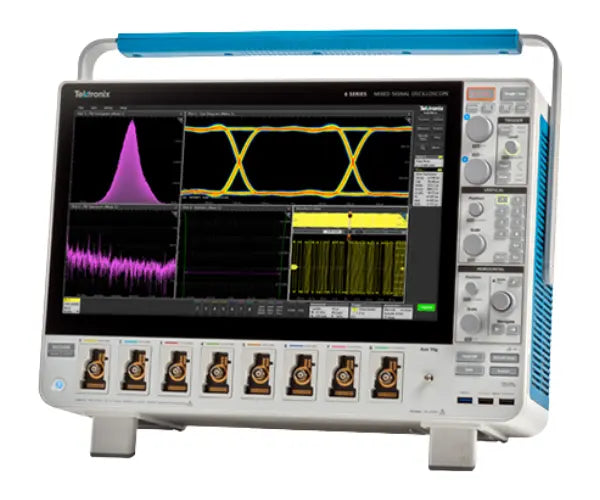

The Tektronix 6 Series B MSO is a mixed signal oscilloscope built for high-speed embedded systems, signal integrity work, and tough debugging jobs. Bandwidth runs 1 GHz to 10 GHz, sample rates hit 50 GS/s, and 12-bit vertical resolution keeps high-speed signal detail intact.
Key Features
1 GHz to 10 GHz bandwidth options
4, 6, or 8 FlexChannel® inputs
Up to 50 GS/s sample rate
Up to 1 Gpoint record length
12-bit ADC resolution
Up to 16-bit resolution at lower bandwidth settings
15.6-inch Full HD 1920 × 1080 capacitive touchscreen
Up to 64 digital logic channels with optional probes
Synchronized multi-channel spectrum analysis
Independent time-domain and spectrum controls
Advanced waveform analysis and automated measurements
TekVPI® probe interface with probe power
1 MΩ and 50 Ω input terminations
High-speed serial and signal-integrity analysis capabilities
Optional arbitrary/function generator
Digital voltmeter and trigger frequency counter features
