Tektronix 5 Series MSO Low Profile

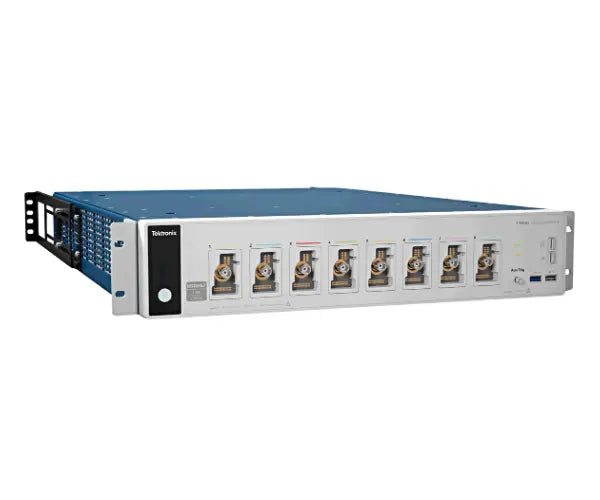

The Tektronix 5 Series MSO Low Profile is a rack mount oscilloscope for automated test equipment, research, and production testing — built for setups where rack space is as tight as the measurement requirements. The MSO58LP packs 8 FlexChannel® inputs plus an auxiliary trigger input into a 2U chassis.

Key Features

• 500 MHz or 1 GHz analog bandwidth
• 8 FlexChannel® inputs
• Up to 64 digital channels with optional logic probes
• 6.25 GS/s real-time sample rate on all channels
• 125 Mpoints standard record length
• Up to 500 Mpoints optional record length
• 12-bit ADC resolution
• Up to 16-bit vertical resolution in High Res mode
• >500,000 waveforms/second capture rate
• Compact 2U rack-mount form factor
• Auxiliary trigger input
• Spectrum View frequency-domain analysis
• FastFrame™ segmented memory
• Advanced waveform math and measurements
• Optional serial protocol decoding and analysis
• Optional arbitrary/function generator
• 10/100/1000 Ethernet connectivity
• TekHSI™ high-speed data transfer
• e*Scope® remote instrument control
