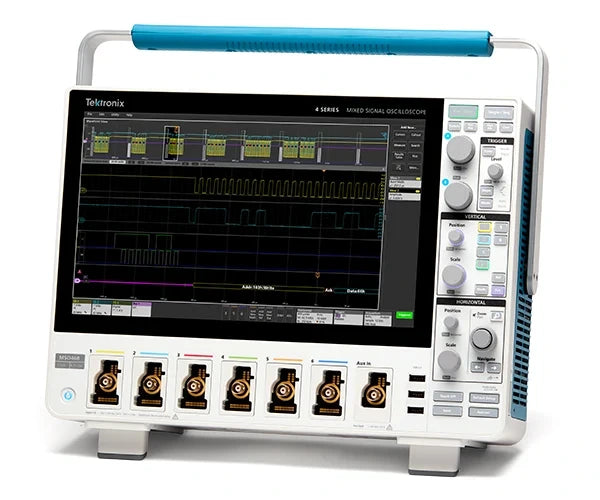

The Tektronix 4 Series B MSO is a mixed signal oscilloscope for electronic design, debugging, and measurement work. Bandwidth ranges 200 MHz to 1.5 GHz, and it comes with 4 or 6 FlexChannel® inputs, a 6.25 GS/s sample rate, and record length up to 62.5 Mpoints.
Key Features
Bandwidth: 200 MHz to 1.5 GHz
4 or 6 FlexChannel® inputs
6.25 GS/s sample rate on all analog and digital channels
Up to 62.5 Mpoints record length
12-bit vertical resolution, up to 16-bit in High Res mode
13.3-inch 1920 × 1080 HD touchscreen
Up to 48 digital logic inputs
Spectrum View mixed-domain analysis
Serial protocol decoding
Built-in arbitrary/function generator
Automated power measurements and 3-phase power analysis
