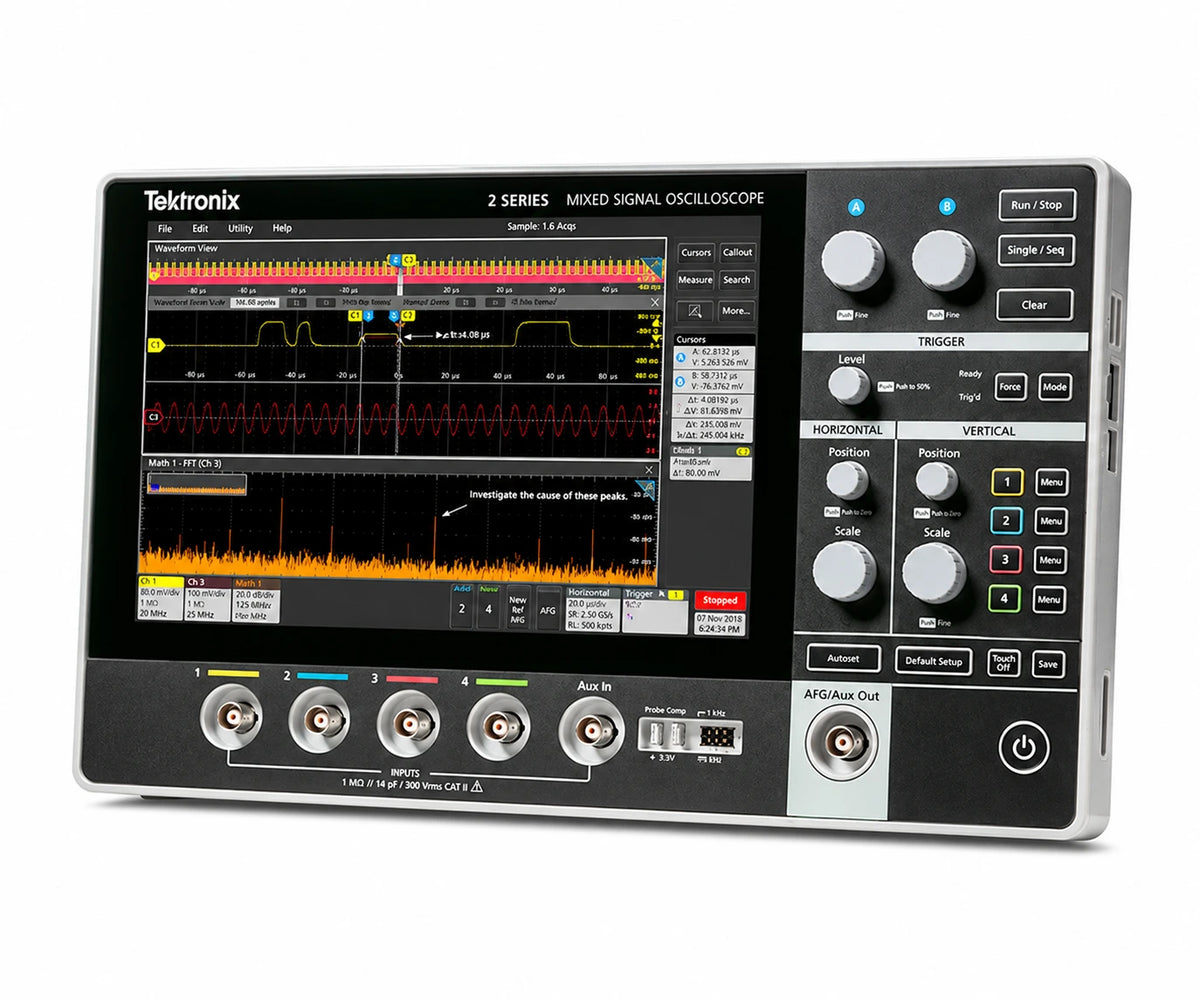

The Tektronix 2 Series MSO Mixed Signal Oscilloscope is a compact, portable oscilloscope designed for electronics testing, debugging, embedded systems, laboratory measurements, and field service.
With 70–500 MHz bandwidth, up to 2.5 GS/s sampling, 10 M-point record length, and 2 or 4 analog channels with up to 16 digital channels, it delivers powerful mixed-signal analysis in a compact touchscreen design.
Key Features
70 MHz to 500 MHz bandwidth options
2 or 4 analog input channels
16 digital channels for mixed-signal analysis
Up to 2.5 GS/s sample rate
10 M-point record length
Up to 4 million waveform captures per second
10.1-inch WXGA capacitive touchscreen
Compact portable design for laboratory and field use
Optional battery operation with up to 8 hours of battery life
Advanced waveform mathematics and FFT analysis
Automated waveform measurements
Optional 50 MHz arbitrary function generator
Optional 4-bit digital pattern generator
Optional Bode plot and frequency-response analysis
