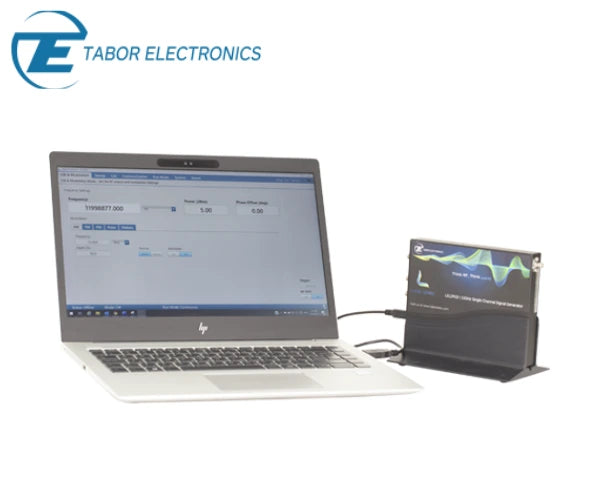

LS6081D 6GHz RF Analog Signal Generator Module | Tabor Electronics

The Tabor Electronics LS6081D is a compact 6GHz RF analog signal generator module from the Lucid series, designed for precision signal-generation and RF test applications. It supports fast frequency switching below 100 μs, with internal AM, FM, PM, sweep and pulse modulation capabilities. The module also provides remote control through standard SCPI and VISA architectures, with USB and SPI interfaces for integration into laboratory and embedded test environments.

Key Features

• 6GHz RF analog signal generation
• Lucid series modular platform
• Frequency coverage up to 6GHz
• Frequency switching speed below 100 μs
• AM, FM and PM modulation
• Sweep and pulse modulation capabilities
• Typical SSB phase noise of -138 dBc/Hz at 1GHz with 10kHz offset
• External baseband modulation support
• Pulse modulation with 60dBc on/off ratio
• SCPI and VISA control architecture
• USB and SPI interfaces
• Compatible with Python, MATLAB, C#/C++ and LabVIEW control environments
• Compact modular form factor
• Designed for desktop and embedded applications

Applications

• RF and microwave test systems
• Wireless communication testing
• RF component evaluation
• Electronic research and development
• Automated test equipment (ATE)
• Signal integrity testing
• Radar and RF development
• Laboratory RF testing
• Embedded RF test systems
• Research and engineering applications
