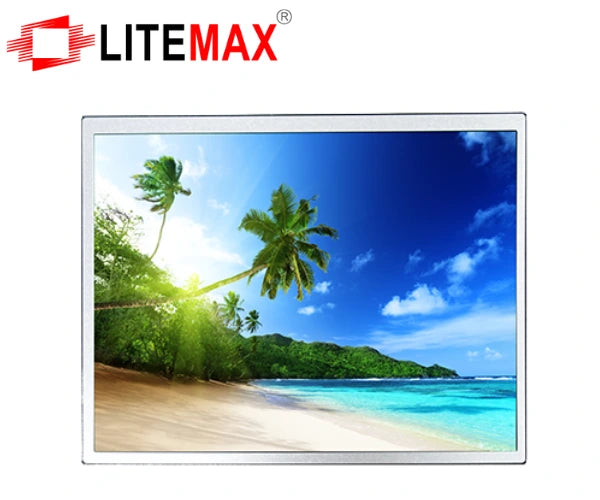

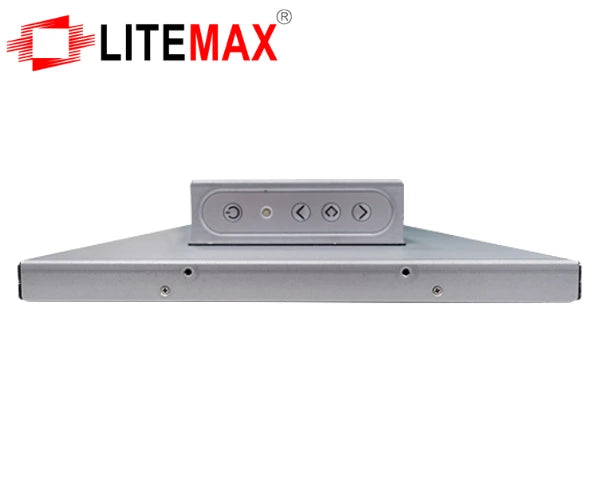

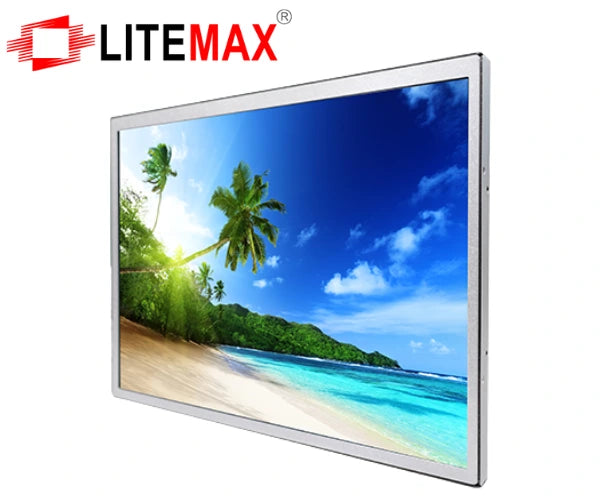

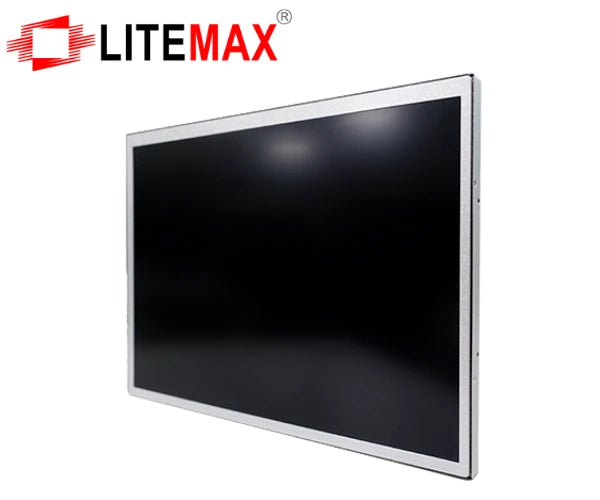

The LITEMAX ULO1215-NXB-Q11 is a 12.1-inch high-brightness TFT LCD display designed for applications where clear visibility and dependable operation are required. It delivers 1024 × 768 resolution with 1000 cd/m² brightness, a 1200:1 contrast ratio and a 178° viewing angle in both horizontal and vertical directions. The display supports LVDS, DVI-I, HDMI and DisplayPort interfaces, while its wide operating temperature range of -30°C to +60°C makes it suitable for demanding display environments.
Key Features
12.1-inch TFT LCD display
1024 × 768 native resolution
1000 cd/m² high brightness
Sunlight-readable display
1200:1 contrast ratio
178° horizontal / 178° vertical viewing angle
16.7 million display colors
82% NTSC color saturation
106 PPI
0.24 × 0.24 mm pixel pitch
25 ms typical response time
LED backlight
Backlight MTBF of 100,000 hours
Wide operating temperature: -30°C to +60°C
Storage temperature: -40°C to +70°C
Low power consumption
CE and FCC approvals
Applications
The LITEMAX ULO1215-NXB-Q11 can be used in compatible:
Industrial control systems
Industrial automation equipment
Outdoor and sunlight-readable display applications
