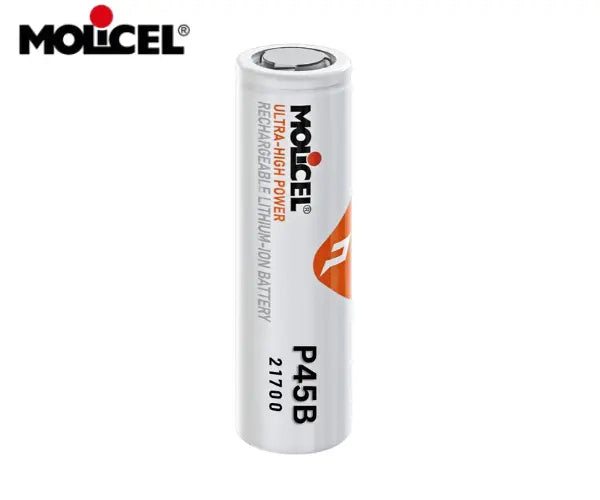

Molicel INR-21700-P45B 21700 Li-ion Cell – 4500mAh, 45A
Molicel INR-21700-P45B 21700 Li-ion Cell – 4500mAh, 45A
Molicel INR-21700-P45B
The Molicel INR-21700-P45B is a high-energy 21700 NCA cell with 4500mAh capacity and up to 45A discharge, suited to battery packs where both capacity and power matter.
| Brand | Molicel |
|---|---|
| Model | INR-21700-P45B |
| Format | 21700 |
| Chemistry | NCA |
| Capacity (typical / minimum) | 4500 mAh / 4300 mAh |
| Nominal voltage | 3.6 V |
| ACIR / DCIR | 7 mΩ / 15 mΩ |
| Max charge / discharge | 13.5 A / 45 A (3C / 10C) |
| Charge temperature | 0°C to 60°C |
| Discharge temperature | -40°C to 60°C |
| Energy density | 643 Wh/l, 242 Wh/kg |
| Positive terminal | Flat top |
| Protection | CID |
| Rechargeable | Yes |
| Dimensions | 21.55 mm max diameter, 70.15 mm max height |
| Weight | 70 g max |
