HFZ1005PV-300T30 High Current Ferrite Bead | TAI-TECH

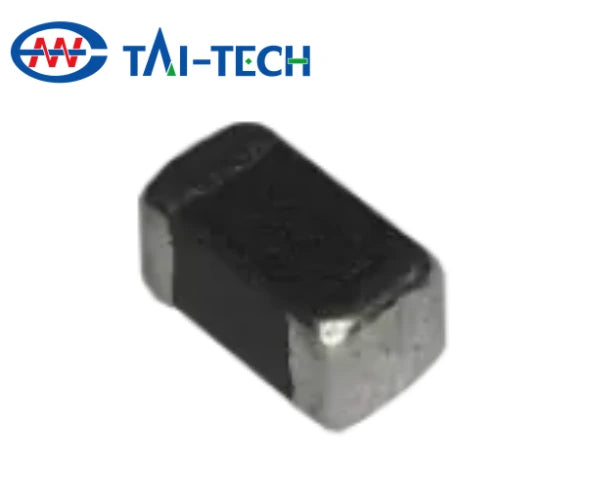

The TAI-TECH HFZ1005PV-300T30 is a high-current ferrite bead from the HFZ_V series, designed for electromagnetic interference (EMI) suppression in electronic circuits. Its compact 1005 surface-mount package supports space-constrained circuit designs requiring noise suppression and low DC resistance.

This ferrite bead features a nominal impedance of 30 Ω ±25%, a rated current of 3,000 mA (3 A), and a maximum DC resistance of 0.022 Ω. It is specified for an operating temperature range of −55°C to +150°C.

Key Features

• Manufacturer: TAI-TECH Advanced Electronics

• Series: HFZ_V

• Part Number: HFZ1005PV-300T30

• Component Type: High-current ferrite bead

• Nominal Impedance: 30 Ω ±25%

• Rated Current: 3,000 mA (3 A)

• Maximum DC Resistance: 0.022 Ω

• Package Size: 1005

• Dimensions (L × W × T): 1.00 × 0.50 × 0.50 mm, each ±0.10 mm

• Operating Temperature: −55°C to +150°C

Applications

• EMI suppression in electronic circuits

• Noise filtering in power supply lines

• Noise management in compact electronic equipment

• Consumer electronics and computing devices

• Electronic designs requiring compact, high-current noise suppression
