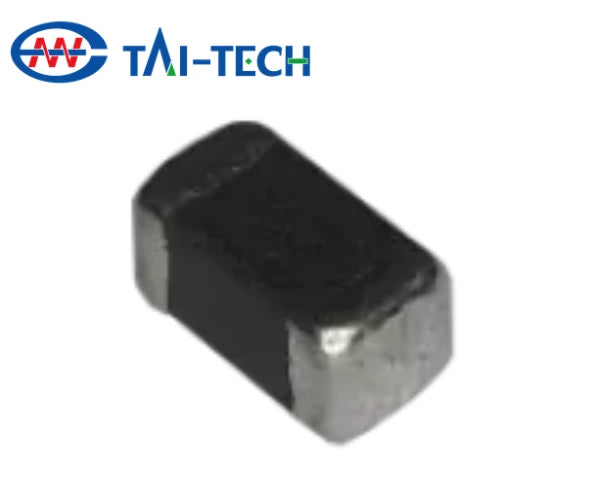

HFZ1005PV-100T40 High Current Ferrite Bead | TAI-TECH

The TAI-TECH HFZ1005PV-100T40 is a high-current ferrite bead designed for electromagnetic interference (EMI) suppression in electronic circuits. It belongs to the HFZ_V series, which features low DC resistance (DCR) and high current-handling capability in a compact surface-mount package.

With a nominal impedance of 10 Ω at the manufacturer's specified test conditions, a rated current of 4,000 mA, and a maximum DC resistance of 0.018 Ω, this component is designed for applications that require noise suppression while maintaining low resistive losses.

Its compact 1005 package makes it suitable for space-constrained electronic designs. The component has specified operating dimensions of 1.00 × 0.50 × 0.50 mm and an operating temperature range of −55°C to +150°C.

Key Features

• Manufacturer: TAI-TECH Advanced Electronics

• Series: HFZ_V

• Part Number: HFZ1005PV-100T40

• Component Type: High-current ferrite bead

• Nominal Impedance: 10 Ω ±25%

• Rated Current: 4,000 mA (4 A)

• Maximum DC Resistance: 0.018 Ω

• Package Size: 1005

• Dimensions (L × W × T): 1.00 × 0.50 × 0.50 mm, each ±0.10 mm

• Operating Temperature: −55°C to +150°C

Applications

• Power-line noise suppression in electronic circuits

• EMI filtering in compact electronic equipment

• Noise management in power distribution circuits

• Consumer electronics and computing equipment

• Electronic systems requiring compact, high-current ferrite beads
