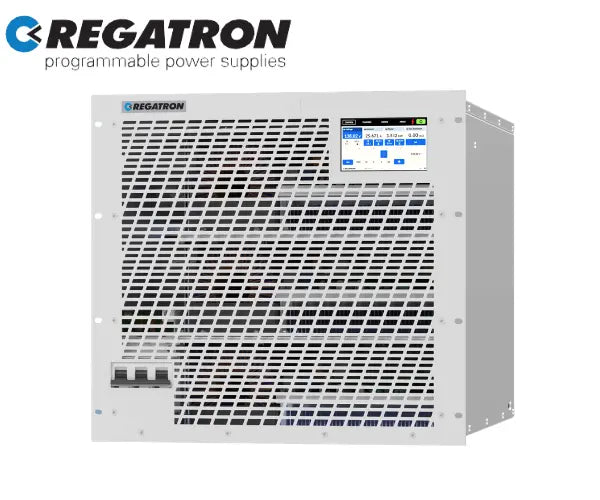

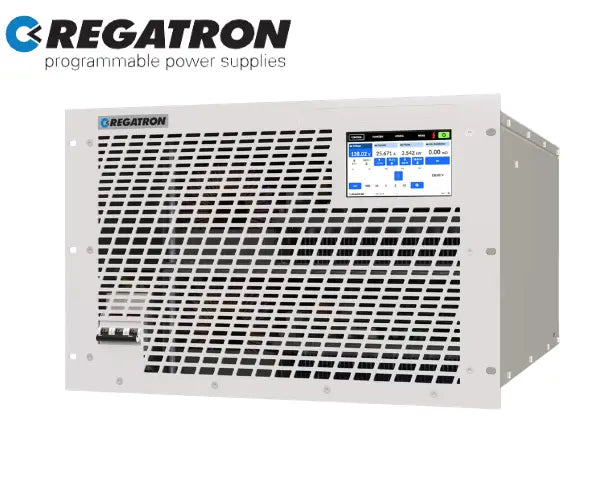

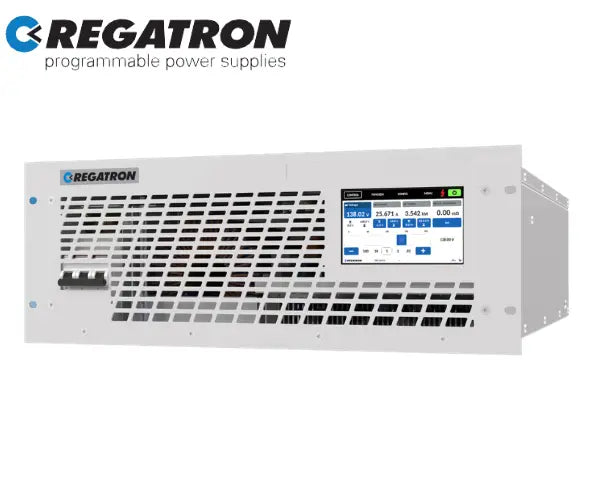

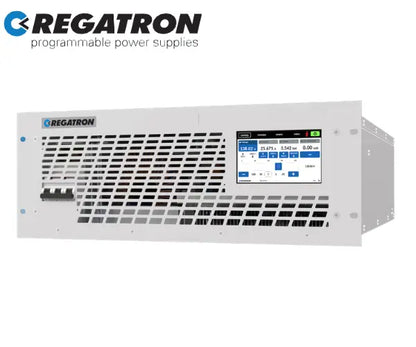

The REGATRON G5.RSS is a programmable, bidirectional and regenerative DC power supply platform designed for demanding laboratory, test bench and industrial applications. It combines fast dynamic response, autoranging operation, flexible CV/CC/CP/CR control modes and scalable power configurations from 9 kW to 5000+ kW, with voltage ranges up to 3000 VDC.
Key Features
Bidirectional regenerative DC power supply
Power range from 9 kW to 5000+ kW
Voltage range from 60 VDC to 3000 VDC
Autoranging factor of 3
Fast control dynamics in the 100–200 μs range
CV, CC, CP and CR control modes
Internal resistance and conductance simulation
High-resolution current measurement
Regenerative operation for improved energy efficiency
Modular and scalable architecture
Parallel, series and mixed configurations
Digital high-speed bus for multi-unit systems
Ethernet and USB control
.NET API and WebAPI support
8-channel integrated digital scope
Optional safety functions and insulation monitoring
