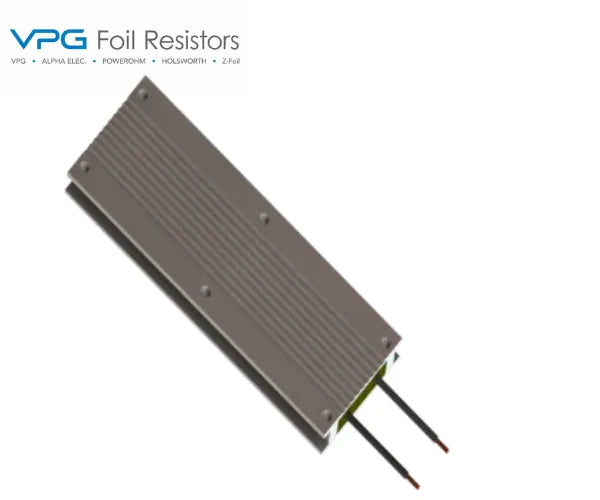

The VPG Foil Resistors FHR 2-80110 is a high-power precision shunt resistor designed for current measurement and power electronics applications. It uses a CuNiMn foil resistive element and an anodized aluminium housing to support stable electrical performance and heat dissipation. The resistor can handle up to 32W in free air and 600W with a suitable heatsink, depending on operating conditions, making it suitable for high-current measurement and industrial test systems
Key Features
High-power precision shunt resistor
Resistance range: 0.001Ω to 500Ω
Free-air power rating: 32W
Power rating with heatsink: up to 600W
Resistance tolerance options: ±0.5%, ±1%, ±2% and ±5%
Temperature coefficient: ±50ppm/K
Long-term stability options: 0.1%, 0.2% or 0.5%, depending on stress
Low inductance: less than 50nH
Maximum current: 60A standard; special cable configurations up to 150A upon request
