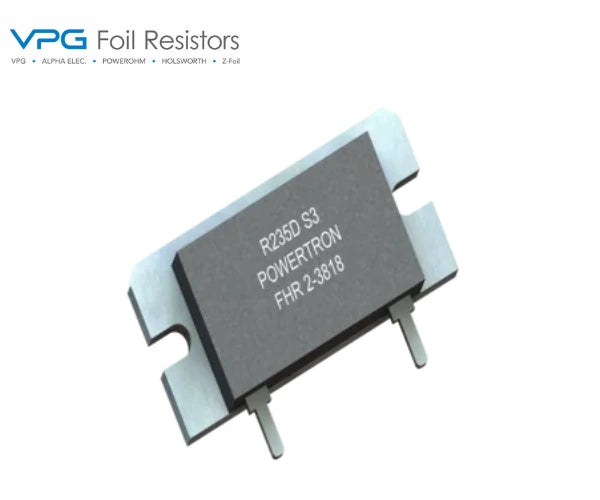

The VPG Foil Resistors FHR 2-3818 is a precision power shunt resistor designed for accurate current measurement and power electronics applications. It uses a low-inductance CuNiMn foil resistive element and an anodized aluminium substrate to support stable resistance performance and effective heat transfer. Its through-hole construction allows heatsink mounting for applications requiring reliable current sensing and precision measurement.
Key Features
Precision current-sensing resistor
Resistance range from 0.01Ω to 100Ω
Power rating of 3W in free air at 70°C
Power rating up to 40W with a suitable heatsink
Low-inductance design
Temperature coefficient of resistance: ±50ppm/K
Resistance tolerance options depend on the selected resistance value
Long-term stability options of 0.1%, 0.2% or 0.5%, depending on operating stress
