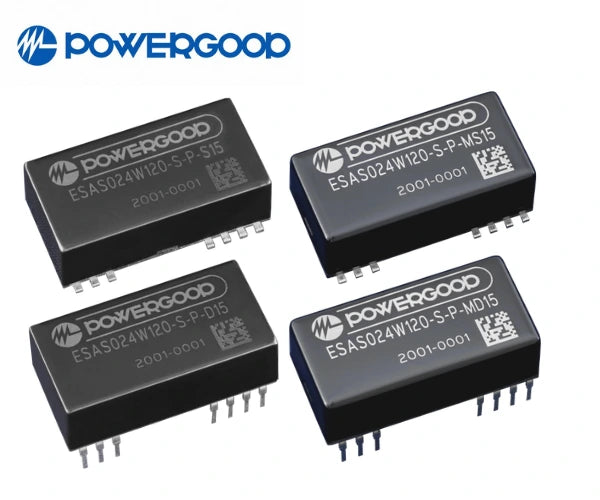

The POWERGOOD ESAS Series is a compact, isolated DC-DC converter designed for industrial electronics, automation, transportation and other demanding applications. It features wide input-voltage ranges, an integrated PI filter, synchronous rectification and efficiency up to 88%. Available in single- and dual-output configurations, the series offers DIP24 and SMD24 mounting options to support different PCB designs and system requirements
Key Features
15W rated output power
Wide input-voltage options: 9–36VDC, 18–75VDC and 40–160VDC
Single and dual output configurations
DIP24 and SMD24 package options
Efficiency up to 88%
1600VDC input-to-output isolation
Integrated PI input filter
Operating case temperature from −40°C to +100°C
No derating up to +70°C
Remote on/off control
Undervoltage lockout (UVLO)
Overcurrent protection (OCP)
Overvoltage protection (OVP)
Overtemperature protection (OTP)
Compact dimensions of approximately 32.3 × 16.5 × 10.2mm
