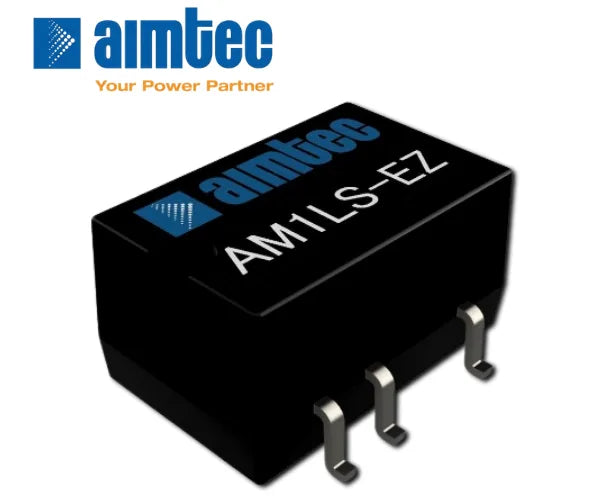

Aimtec AM1LS-2415SH30EZTR 1W DC-DC Converter

The Aimtec AM1LS-2415SH30EZTR is a compact 1W isolated DC-DC converter designed to generate a regulated 15V output from a 24VDC input supply. It provides up to 67mA output current, 3000VDC input-to-output isolation, and an SMD package for PCB integration. With an operating temperature range of -40°C to +105°C, it is suited to compact industrial and embedded power-conversion designs.

Key Features

• 1W power rating
• 24VDC nominal input
• 19.2–28.8VDC input range
• 15VDC single output
• Up to 67mA output current
• 3000VDC input-to-output isolation
• SMD package
• -40°C to +105°C operating temperature
• Maximum output-voltage tolerance of ±5%
• Tape-and-reel version
• Designed for PCB-level power conversion

Applications

Suitable for compatibility:

• Industrial electronics
• Embedded control systems
• PCB-mounted electronic equipment
• Instrumentation systems
• Industrial automation
• Sensor and interface circuits
• Communication electronics
• Isolated power-supply circuits
• Compact electronic control boards
