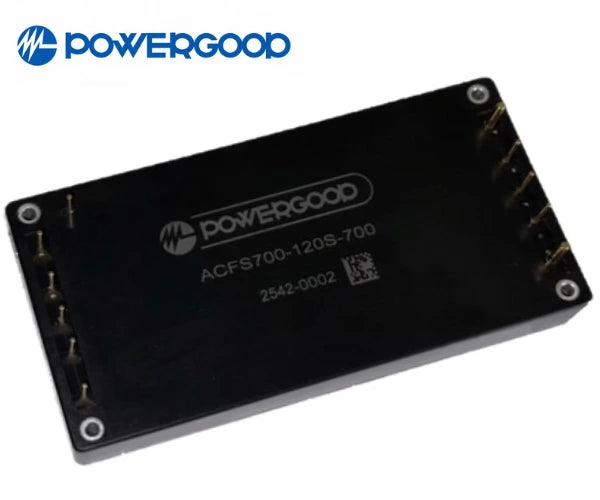

The POWERGOOD ACFS700 Series is a high-power, isolated AC-DC converter designed for industrial, telecommunications, medical and other demanding electronic systems. It features a universal 90–264VAC input, integrated active power factor correction (PFC), and efficiency up to 90%. The full-brick design supports baseplate cooling, external capacitor-based hold-up time extension and optional parallel operation. Compared with the ACF700 series, the ACFS700 adds a remote on/off function for improved system-level power control.
Key Features
700W AC-DC power conversion
Universal 90–264VAC input
Supports 50Hz, 60Hz and 400Hz input frequencies
Integrated active PFC
Efficiency up to 90%
Full-brick, low-profile package
Baseplate-cooled construction
Remote on/off functionality
Reinforced 3kVAC isolation
Output-voltage trimming of ±5%
External capacitor support for extended hold-up time
