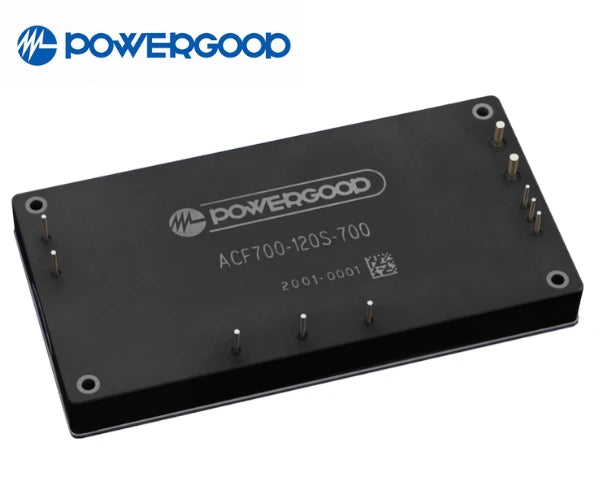

The POWERGOOD ACF700 Series is a high-power, isolated AC-DC converter designed for industrial power systems and demanding electronic applications. It supports a universal 90–264VAC input, active power factor correction (PFC), and efficiency up to 90%. Its full-brick form factor, baseplate cooling and reinforced 3kVAC insulation make it suitable for systems requiring high output power, thermal management and reliable operation across a wide temperature range.
Key Features
700W AC-DC power conversion
Universal 90–264VAC input
Integrated active PFC
Efficiency up to 90%
Full-brick compact form factor
Baseplate-cooled design
Operating case temperature: −40°C to +100°C
Reinforced 3kVAC insulation
External capacitor support for extended hold-up time
Optional parallel operation
±5% output-voltage adjustment
Overvoltage protection (OVP)
Overcurrent protection (OCP)
Short-circuit protection (SCP)
Overtemperature protection (OTP)
No minimum load requirement
Applications
Industrial power systems
Telecommunications equipment
Infrastructure power conversion
High-power electronic equipment
Industrial automation
Embedded power systems
Power conversion and distribution
Systems operating in demanding temperature environments
