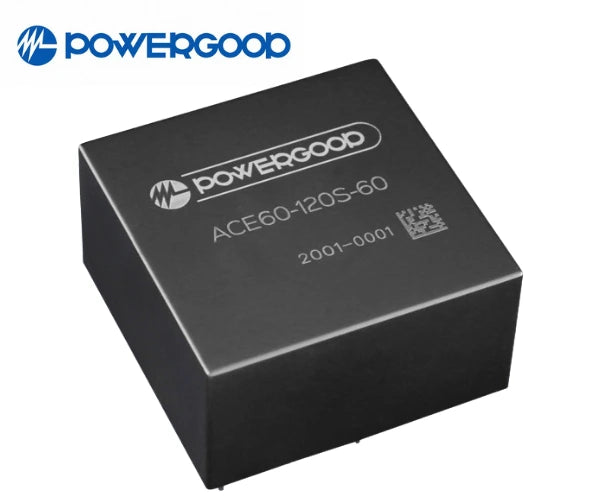

The POWERGOOD ACE60 Series is a compact, isolated AC-DC power converter designed for industrial electronics, communication systems, medical equipment and other electronic applications. It supports a universal 90–264VAC input range, efficiency up to 90%, and peak load capability of 120W for up to 10 seconds. Its encapsulated construction, reinforced insulation and integrated protection functions make it suitable for reliable power conversion in space-constrained systems.
Key Features
60W rated output power for most variants
120W peak load capability for up to 10 seconds
Universal 90–264VAC input
Output options: 5V, 12V, 15V, 24V, 36V and 48V DC
Compact 2 × 2-inch form factor
Encapsulated power module
Efficiency up to 90%, depending on output model
Less than 0.5W no-load power consumption
4kVAC input-to-output reinforced insulation
Leakage current up to 100µA
±10% output-voltage trimming
Overvoltage, overcurrent, overtemperature and short-circuit protection
Operating temperature range of −40°C to +80°C
No minimum load requirement
Designed for relevant industrial, medical and information-technology safety standards
