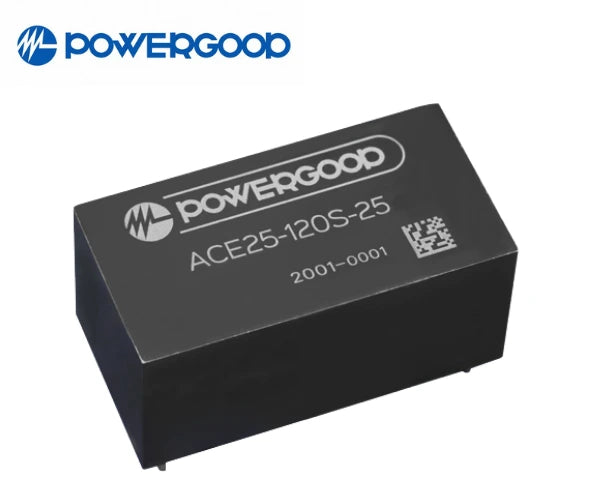

ACE25 25W Encapsulated AC-DC Power Converter

The POWERGOOD ACE25 Series is a compact, isolated AC-DC power converter designed to provide regulated DC power for industrial electronics, communication equipment, medical devices and other electronic systems. It supports a universal 90–264VAC input range, offers efficiency up to 88%, and provides a peak load capability of 50W for up to 10 seconds. Its encapsulated design, low no-load power consumption and reinforced insulation make it suitable for space-constrained power conversion applications.

Key Features

• 25W rated output power

• 50W peak load capability for up to 10 seconds

• Universal 90–264VAC input

• Available output voltages: 5V, 12V, 15V, 24V, 36V and 48V DC

• Compact encapsulated construction

• Efficiency up to 88%, depending on model

• Less than 0.3W no-load power consumption

• 4kVAC input-to-output isolation

• Low leakage current of up to 100µA

• Output voltage adjustment of ±10%

• Overvoltage and short-circuit protection

• Overcurrent and overtemperature protection

• Operating temperature range of −40°C to +80°C

• No minimum load requirement

Applications

• Industrial control systems

• Communication equipment

• Network devices

• Household electronics

• Medical electronic equipment

• Embedded electronic systems

• General-purpose AC-DC power conversion

• Instrumentation and control electronics
