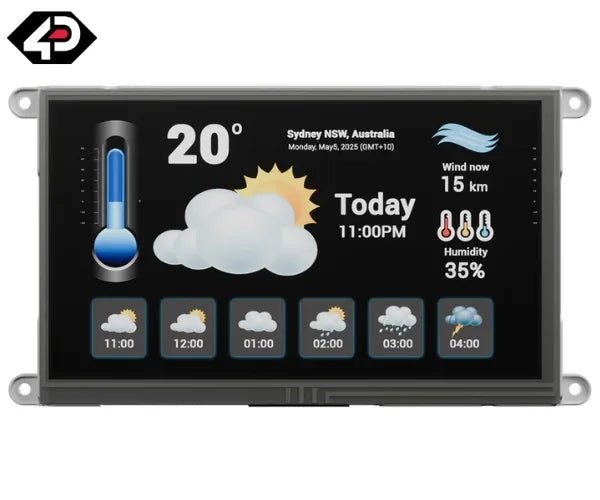

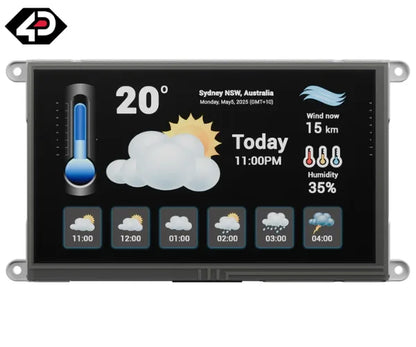

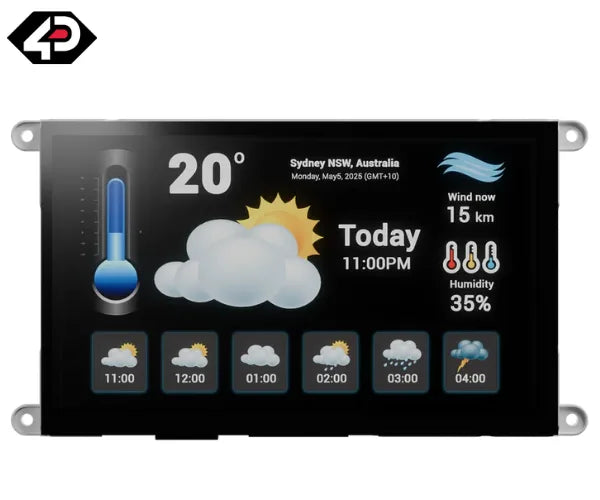

4D Systems gen4-uLCD 7.0" WVA Intelligent Touch Display

The 4D Systems gen4-uLCD-70DCT-CLB-WVA is a 7.0-inch intelligent display module combining an 800 × 480 TFT screen, wide viewing angle and capacitive touch functionality. Powered by a DIABLO16 processor, the module is designed for embedded user-interface applications where integrated display control and touch operation are required. The Cover Lens Bezel provides a finished touch-display format for equipment and system integration.

Key Features

• 7.0-inch TFT display

• 800 × 480 pixel resolution

• Wide Viewing Angle (WVA)

• Approximately 446 cd/m² brightness

• Capacitive touch interface

• Cover Lens Bezel (CLB)

• Integrated DIABLO16 processor

• Viewing area of 153.84 × 85.63 mm

• Operating temperature: -20°C to +70°C

• Storage temperature: -30°C to +80°C

• Overall dimensions: 190.1 × 121.9 × 8.9 mm

• Intelligent display architecture for embedded applications

• Model: gen4-uLCD-70DCT-CLB-WVA

Applications

The display module can be used in compatibility:

• Industrial control interfaces

• Human-machine interfaces (HMI)

• Appliance control panels

• Automotive interface systems

• Smart-building equipment

• Medical equipment interfaces

• Transportation systems

• Embedded control systems

• Smart-device interfaces

• Custom electronic equipment
