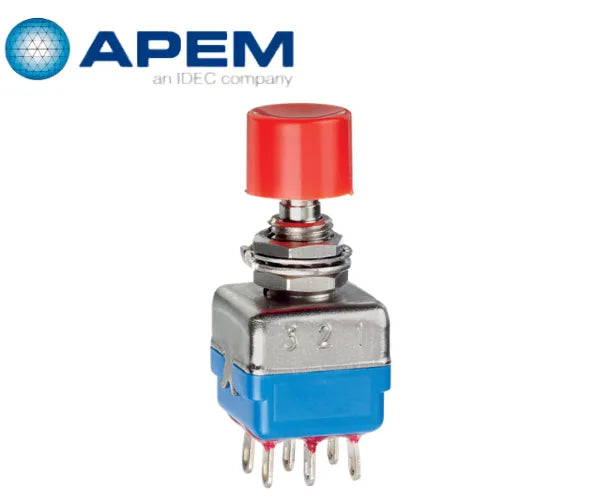

13435A Single Pole ON Pushbutton Panel Switch | APEM

The APEM 13435A is a single-pole ON pushbutton switch designed for panel and PC mounting applications. It uses silver contacts with a nickel-plated brass finish and epoxy-sealed terminals. With a maximum resistive-load rating of 4A at 30VDC and an operating temperature range of -40°C to +85°C, it is suitable for control functions in electrical and electronic equipment.

Key Features

• Single-pole ON switching function
• Silver contact material
• Nickel-plated brass finish
• Standard 6.35 mm (0.25 in) bushing
• Epoxy-sealed terminals
• Solder lug or right-angle terminal options
• 4A at 30VDC maximum resistive-load rating
• Maximum initial contact resistance of 10 mΩ
• Minimum insulation resistance of 1,000 MΩ
• Operating temperature from -40°C to +85°C
• 2 mm total travel
• Suitable for panel and PC mounting
• Maximum recommended nut torque: 1.25 Nm
• Maximum standard panel thickness: 2 mm

Applications

• Control panels
• Industrial machinery
• Electrical equipment
• Alarm systems
• Lighting control systems
• Electronic control equipment
• Panel-mounted control interfaces
• Industrial automation equipment
